Smart 4G law enforcement Body Worn Camera C310
1) Production introduction
Smart 4G Body Worn Camera Model C310 is based on Android system and 4G full frequency network, which integrates all functions of video and audio recording,4G video & audio monitory and management, POC feature, tracking location, wide angle & fixed-focus and Digital zoom together to meet nearly all scenes and two-way video communication demand. C310 Body Worn Camera can match with Monitory platform to realize a visible, audible and controllable smart application management.
4G Smart BWC Picture
-------------------------------------------------------------------------------

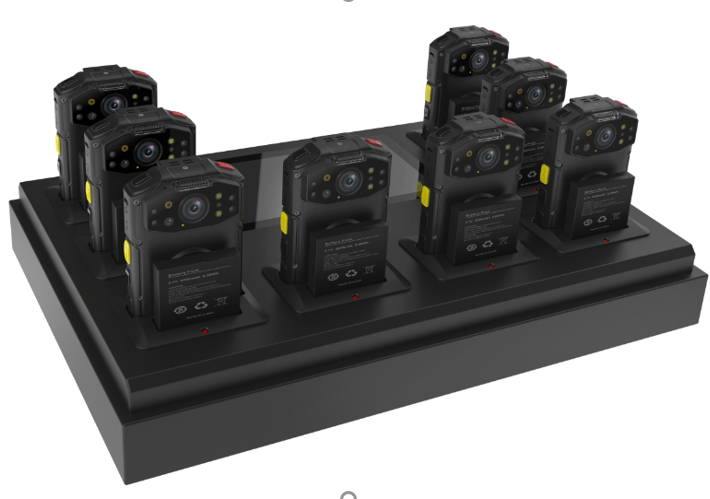

C310 and its docking station
2)Product Main Feature
1、Real time control Video and Audio by 4G,
2、3 cameras can be extended more application functions
3、SOS button can give Control Center alarm by sending real-time video and audio information.
4、PTT by 4G/WIFI, Full 4G frequency can meet nearly all Country Operators.
5、Real-time transfer and at the same time can be recorded in Body Worn Camera.
6、Add Red-Blue warning light to make the user more safer in evening.
3)Functions
Excepting support all basic 4G body cam function, we also accept to connect with customers’ platform according to your platform APK.
Support 2G/3G/4G
Front Big Recording button design to make user can operate it easily even with gloves.
One button uploading recorded video, audio and picture.
Front camera with wide angle, around with IR light, LED white light and laser light could be defined according to actual demand
Real-time transfer and at the same time can be recorded in Body Worn Camera, double back up to avoid data missing
Real-time audio command management according to present situation of streaming video by 4G
Location by GPS+BD+GLONASS+Galileo to realize higher position accuracy.
Shortcut key design can realize expected function by one button operation
Changed battery & big capacity design to guarantee long time recording word.
Key event marking function
SOS one button give alarm
Support wifi and BT
Support NFN can read chipset information by touching lightly
4)Main Specification:
Item | Specification |
4G wireless transfer frequency | GSM\CDMA\CDMA2000\WCDMA\FDD-LTE\TDD-LTE
|
T card capacity | Standard with 32G, 64G/128G is optional |
Interface type | Standard earphone port, Mini USB, SIM card slot |
尺寸Size | ≤103x65x18mm |
Weight | ≤180g |
View angle | ≥120 degree |
Waterproof level | IP68 |
Screen | TP 3.1 Inch |
Recording time | One battery recording time is more than 12h |
Video resolution | 1920×1080，1280×720,640×480，480×320 |
Video format | MP4 |
Picture Pixel | True Pixel 2560×1950、3264×2448、 4736×3552,6528*4896 |
Picture format | JPEG |
Touch screen | Support |
Time synchronization | Support |
LED white light | Support |
IR function | 3 to 4 m to see people face, in 10 m to see people outline |
WIFI | Support |
NFC | Support |
GPS | Support |
BT | Support |
PTT | Support |
APP application | Optional (according to customer actual demand) |
5) Accessories
Standard accessories：USB cable，360 degree rotary Metal clip, AC adaptor，360 degree shoulder clip，Single dock charging base
Optional accessories: Magnetic mounting，Vehicle mount，Car charger, PTT earphone, BT PTT earphone, External camera, Battery

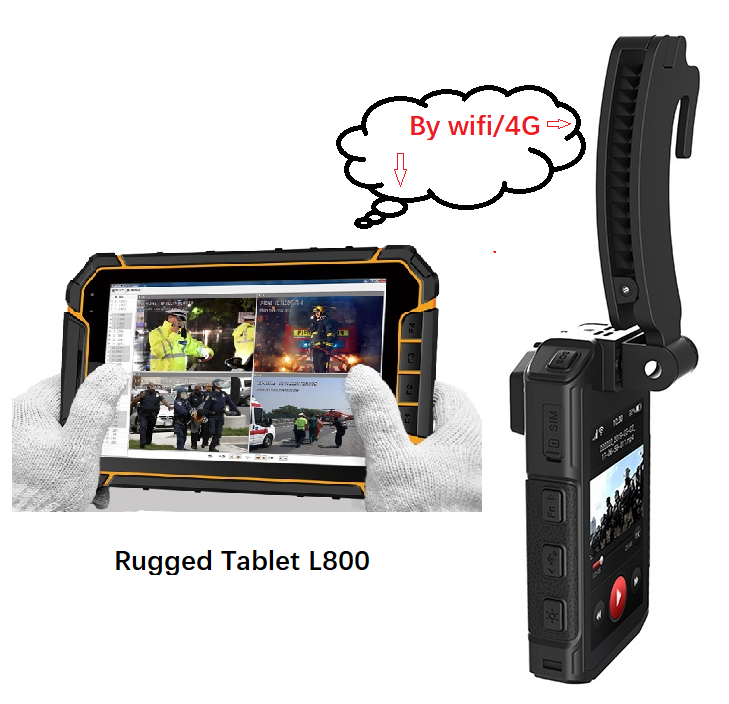

6) Platform: Can choose our Rugged tablet L800 to be Mobile Control center.
